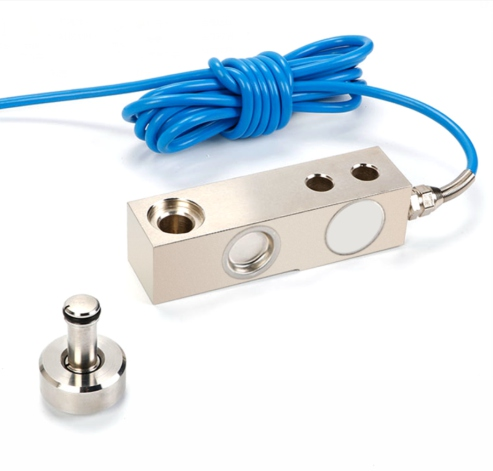

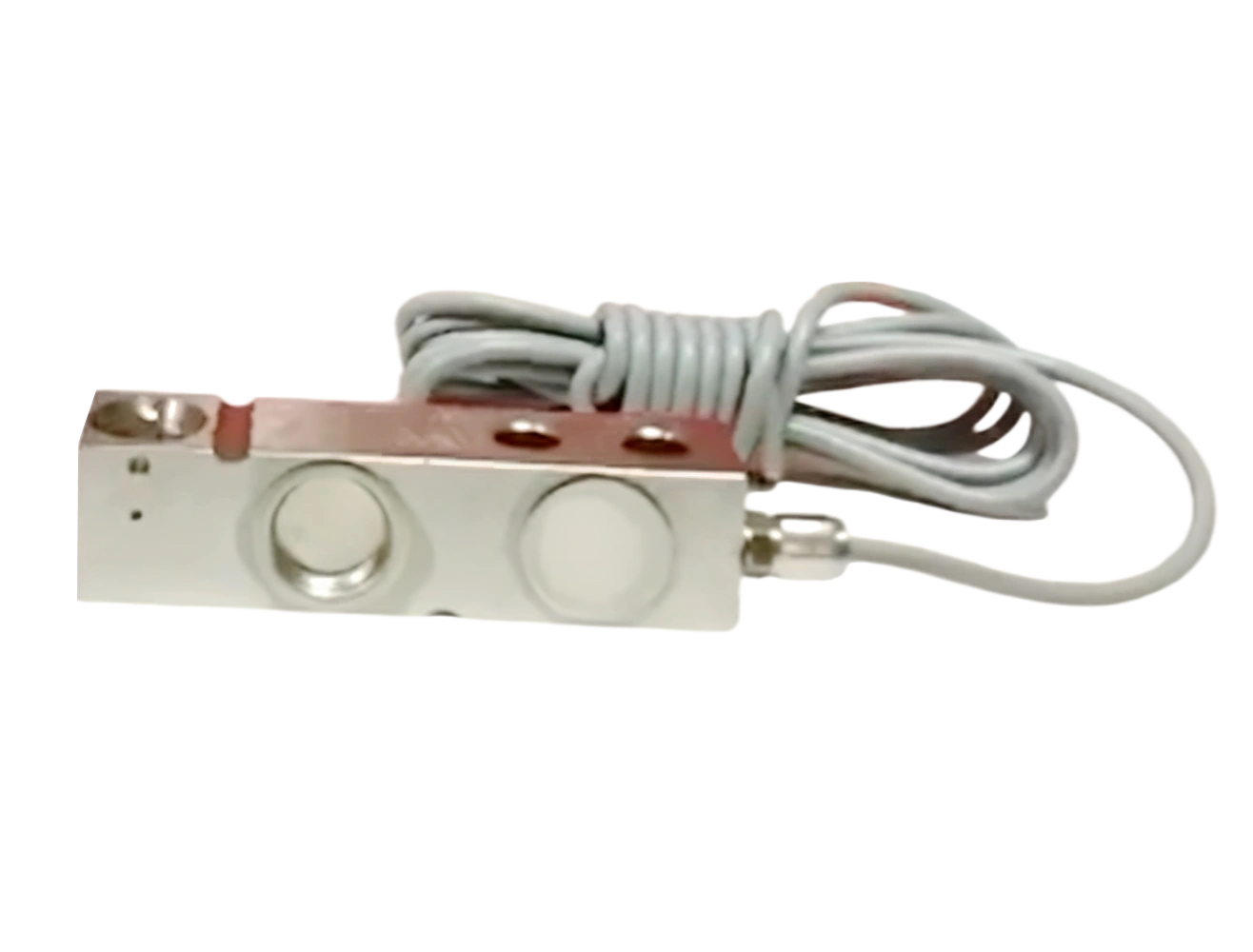

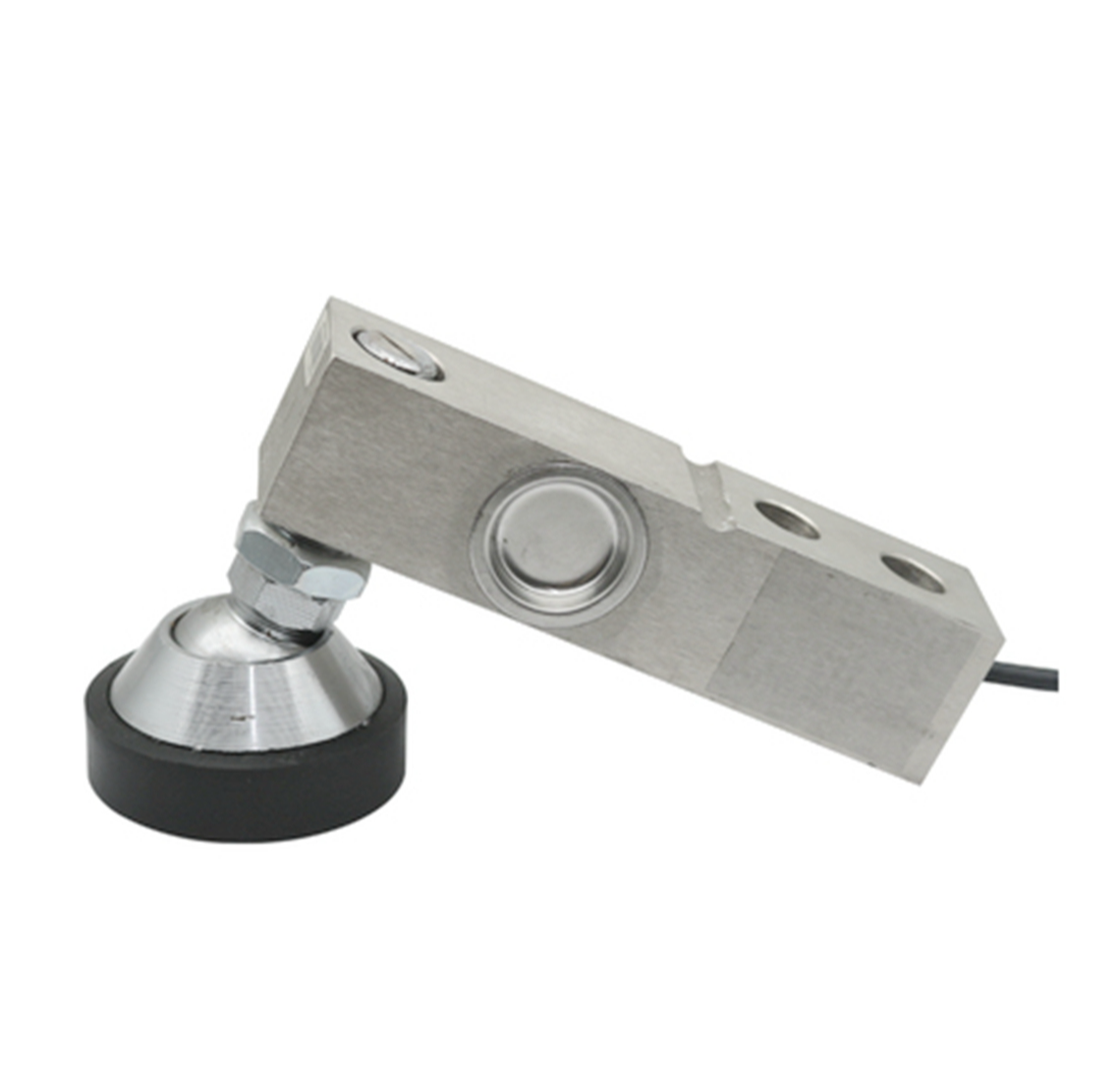

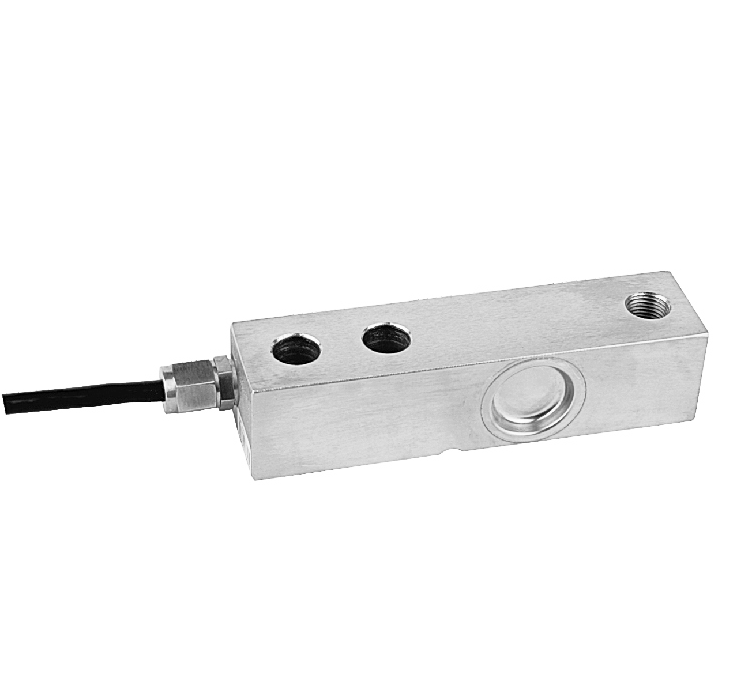

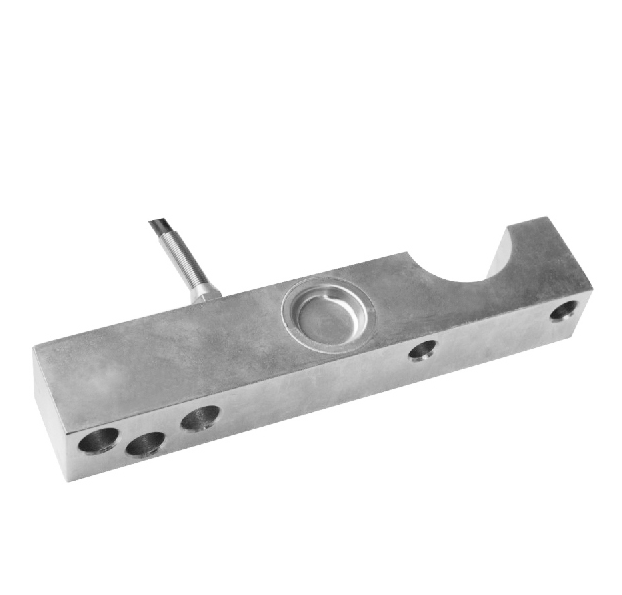

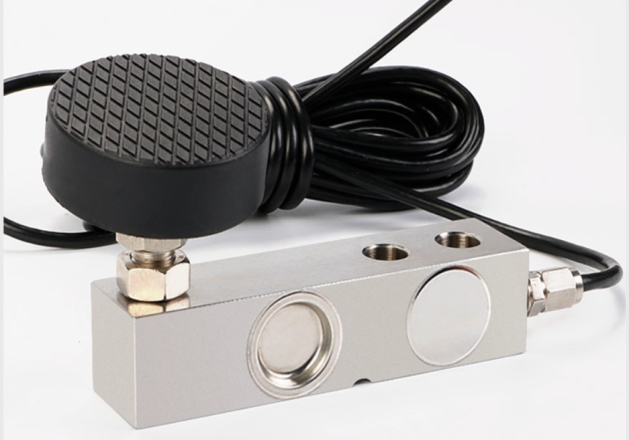

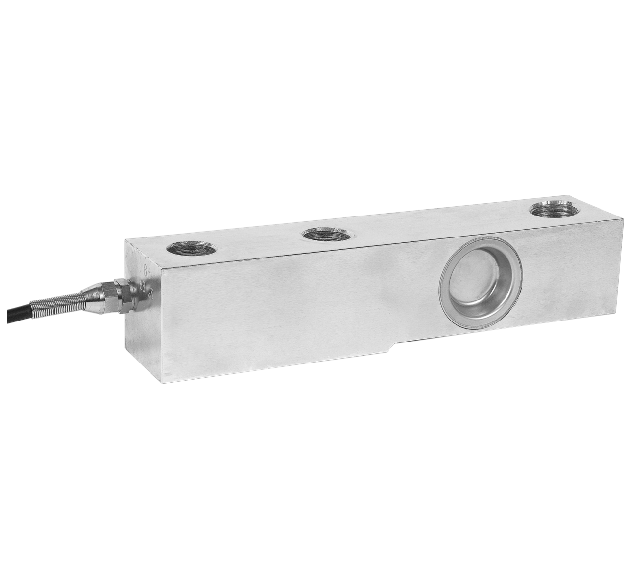

Shear Beam Load Cell
The shear beam load cell is a force measurement device that uses a shear or bending cantilever beam as its core structure. It features a mechanical design with one end fixed and the other end under load, and is equipped with a steel ball force transmission component to achieve automatic self-alignment under load. Its measurement range spans from 50 kg to 20 tons, with an accuracy of ±0.03% F.S., and a maximum protection rating of IP67, suitable for industrial environments from -20°C to 80°C. The device ensures reliability through welded sealing and dustproof design, and is mainly used in industrial weighing systems such as electronic truck scales and hopper scales. It supports a dual-ball-head structure for quick installation and component interchangeability.
